MERCURY MARINER 105 140JET 135 150 175 200 225 HP 2-STROKE SERVICE REPAIR MANUAL

MERCURY MARINER 105 140JET 135 150 175 200 225 HP 2-STROKE SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 797
FILE SIZE: 39.2MB

MODEL & SERIAL COVERED:

1992 THROUGH 2000

105/140 JET / 135 / 150 /

150 XR6 /150 MAGNUM III / 150 EFI

175 /175 EFI / 200 / 200 EFI

WITH SERIAL NUMBERS

0D082000 THROUGH 0G960499

1992 THROUGH 2000

150/200/225 PRO MAX

150/200/225 SUPER MAGNUM

WITH SERIAL NUMBERS

0D082000 THROUGH 0T105314


CONTENTS:

SECTION 1 - IMPORTANT INFORMATION

SPECIFICATIONS

MAINTENANCE

GENERAL INFORMATION

OUTBOARD INSTALLATION

SECTION 2 - ELECTRICAL

IGNITION

CHARGING & STARTING SYSTEM

TIMING, SYNCHRONIZING & ADJUSTING

WIRING DIAGRAMS

SECTION 3 - FUEL SYSTEM

FUEL PUMP

CARBURETOR

FUEL INJECTION 1995 AND PRIOR

FUEL INJECTION 1996 AND UP

OIL INJECTION

EMISSIONS

SECTION 4 - POWERHEAD

POWERHEAD

COOLING

SECTION 5 - MID-SECTION

CLAMP/SWIVEL BRACKETS & DRIVE SHAFT HOUSING

POWER TRIM

SECTION 6 - LOWER UNIT

RIGHT HAND ROTATION

LEFT HAND ROTATION

1.78:1 RATIO (4-1/4, DIA.)

RIGHT HAND NON-RATCHETING

LEFT HAND NON-RATCHETING

JET OUTBOARDS

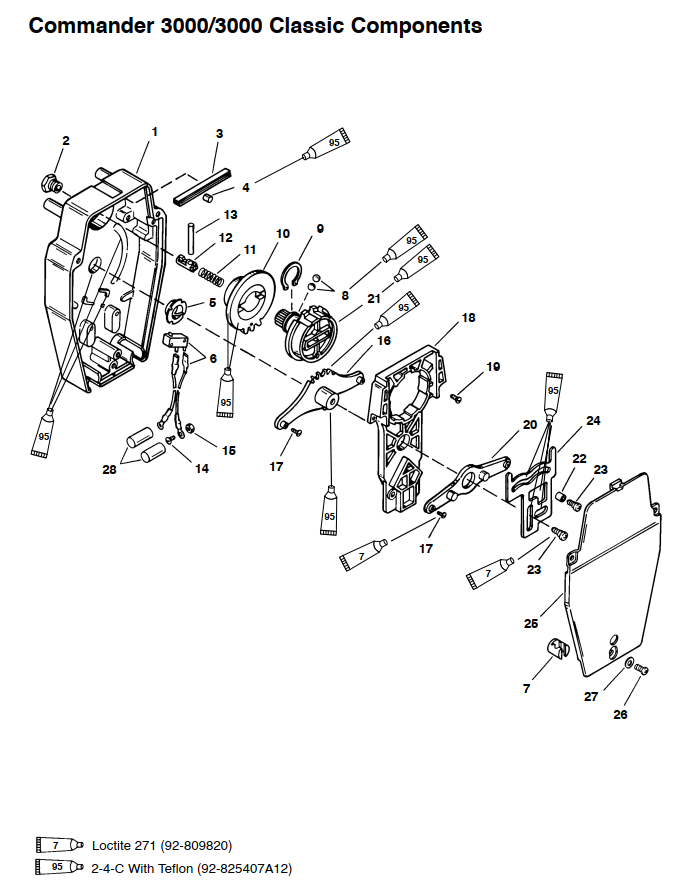

SECTION 7 - ATTACHMENTS/CONTROL LINKAGE
