MITSUBISHI PAJERO TRITON R4A51 V4A51 AUTO TRANSMISSION SERVICE REPAIR MANUAL

MITSUBISHI PAJERO TRITON R4A51 V4A51 AUTO TRANSMISSION SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 147
FILE SIZE: 11.5MB

ENGINE COVERED:

R4A51

V4A51


CONTENTS:

GENERAL INFORMATION

SPECIAL TOOLS

TRANSMISSION AND EXTENSION HOUSING (R4A51)

TRANSMISSION AND TRANSFER (V4A51)

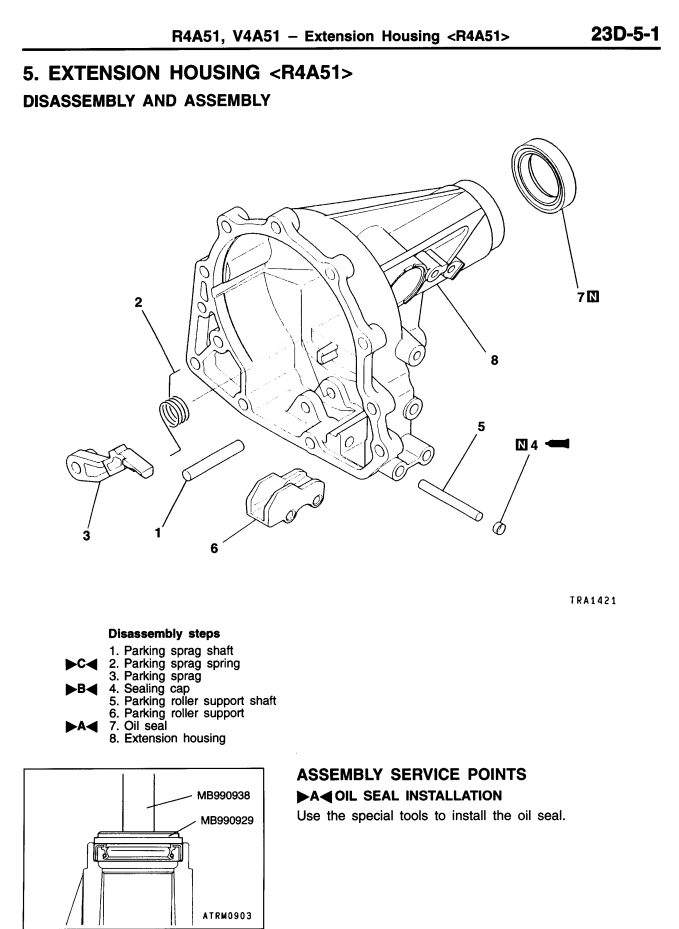

EXTENSION HOUSING (R4A51)

TRANSFER CASE ADAPTER (V4A51)

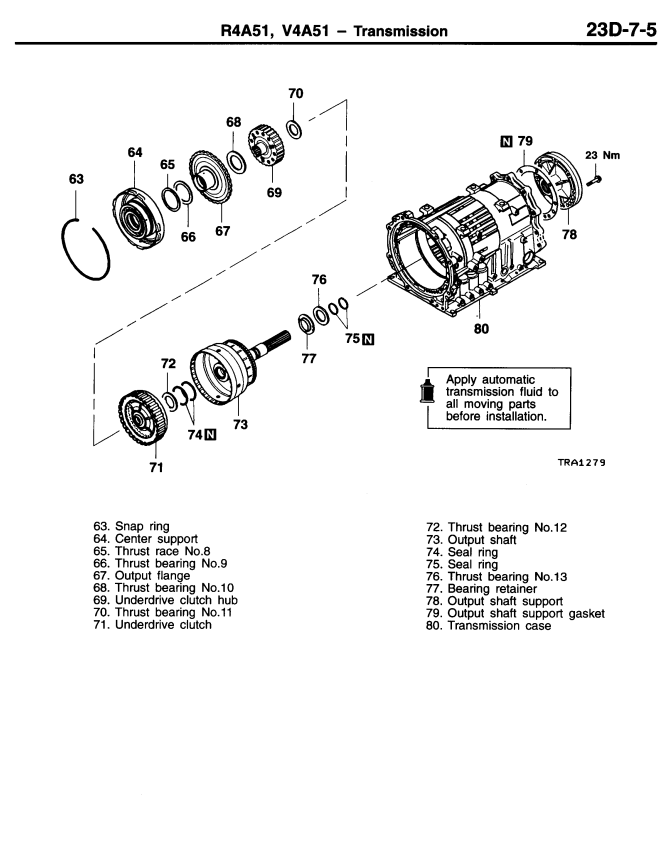

TRANSMISSION

REVERSE AND OVERDRIVE CLUTCH

SECOND BRAKE

LOW/REVERSE ANNULUS GEAR

CENTER SUPPORT

UNDERDRIVE CLUTCH

VALVE BODY

TRANSFER (V4A51)

TRANSFER (V4A51 - Super Select 4WD II)

TRANSFER CASE PLATE (V4A51)

INPUT GEAR (V4A51)

COUNTER GEAR (V4A51)

REAR OUTPUT SHAFT (V4A51 - Part Time 4WD)

REAR OUTPUT SHAFT (V4A51 - Super Select 4WD II)

FRONT OUTPUT SHAFT (V4A51)

SPEEDOMETER GEAR <R4A51-5, V4A51-5)

TRANSFER DRIVE SHAFT (V4A51 - Super Select 4WD II)

SHIFT RAIL DRIVE GEAR (V4A51 - Super Select 4WD II)

2-4WD SHIFT RAIL AND H-L SHIFT RAIL (V4A51 - Super Select 4WD II)

EXTRAS INCLUDED:

PARTS MANUAL
