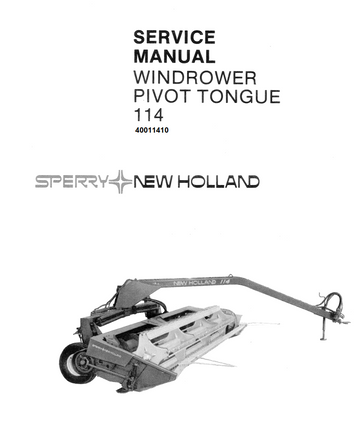

NEW HOLLAND 114 & 116 PIVOT TONGUE WINDROWER MOWER CONDITIONER SERVICE REPAIR MANUAL

NEW HOLLAND 114 & 116 PIVOT TONGUE WINDROWER MOWER CONDITIONER SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 66
FILE SIZE: 46.7MB

MODEL COVERED:

NEW HOLLAND 114 PIVOT TONGUE WINDROWER

ISSUED:

PART NO: 40011410

1981

NEW HOLLAND 116 PIVOT TONGUE MOWER CONDITIONER

ISSUED:

PART NO: 40011610

1987


CONTENTS:

NEW HOLLAND 114 PIVOT TONGUE WINDROWER:

INTRODUCTION/ TROUBLESHOOTING HYDROSTATIC SYSTEM

HYDROSTATIC PUMP AND GEARBOX

INDEX

NEW HOLLAND 116 PIVOT TONGUE MOWER CONDITIONER:

SAFETY

SECTION 1 - HYDROSTATIC SYSTEM

SECTION 2 - HYDRAULIC CYLINDERS

SECTION 3 - GEARBOXES

SECTION 4 - CONDITIONER ROLLS

SECTION 5- SICKLE AND SICKLE DRIVE

SECTION 6 - REEL AND AUGER

INDEX
