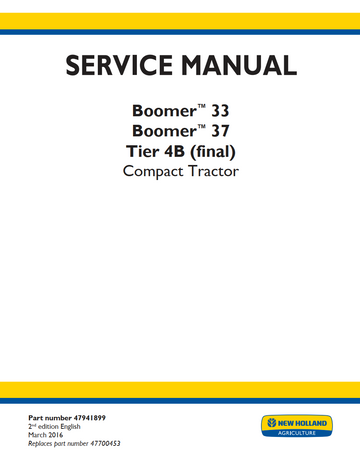

NEW HOLLAND BOOMER 33 BOOMER 37 TIER 4B COMPACT TRACTOR SERVICE REPAIR & WIRING MANUAL

NEW HOLLAND BOOMER 33 BOOMER 37 TIER 4B COMPACT TRACTOR SERVICE REPAIR & WIRING MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 3393
FILE SIZE: 331MB

MODEL COVERED:

BOOMER 33 - ENGINE - N843T-F-24

BOOMER 37 TIER 4B (FINAL), CAB - ENGINE - N843LT-F-27

BOOMER 37 TIER 4B (FINAL), ROPS - ENGINE - N843LT-F-27

PART NUMBER 47941899

2ND EDITION ENGLISH

MARCH 2016

REPLACES PART NUMBER 47700453

PART NUMBER 47998502

2ND EDITION ENGLISH

MARCH 2016

REPLACES PART NUMBER 47708287 AND 47708288

PART NUMBER 47998501

2ND EDITION ENGLISH

MARCH 2016

REPLACES PART NUMBER 47708286

PART NUMBER 47998505

2ND EDITION ENGLISH

MARCH 2016

REPLACES PART NUMBER 47708288

PART NUMBER 47998504

2ND EDITION ENGLISH

MARCH 2016

REPLACES PART NUMBER 47708287 AND 47708288

PART NUMBER 47998500

2ND EDITION ENGLISH

MARCH 2016

REPLACES PART NUMBER 47708285

PART NUMBER 47998503

2ND EDITION ENGLISH

MARCH 2016

REPLACES PART NUMBER 47708287 AND 47708288


CONTENTS:

INTRODUCTION

ENGINE

CLUTCH

TRANSMISSION

FRONT AXLE SYSTEM

REAR AXLE SYSTEM

HYDROSTATIC DRIVE

POWER TAKE-OFF (PTO)

BRAKES AND CONTROLS

HYDRAULIC SYSTEMS

HITCHES, DRAWBARS, AND IMPLEMENT COUPLINGS

STEERING

WHEELS

CAB CLIMATE CONTROL

ELECTRICAL SYSTEMS

PLATFORM, CAB, BODYWORK, AND DECALS

ELECTRICAL SCHEMATIC POSTER - WITH CAB

ELECTRICAL SCHEMATIC POSTER - WITH CAB

ELECTRICAL SCHEMATIC POSTER - WITH ROPS, HST

ELECTRICAL SCHEMATICS INCLUDED
