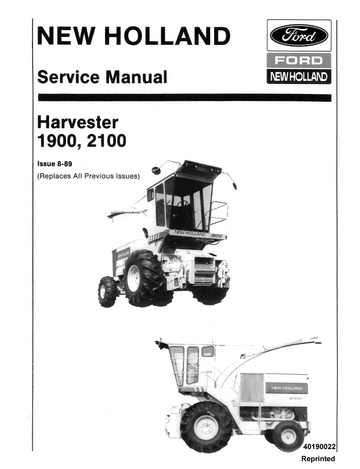

NEW HOLLAND FORD NH 1900 2100 FORAGE HARVESTER SERVICE REPAIR MANUAL

NEW HOLLAND FORD NH 1900 2100 FORAGE HARVESTER SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 366
FILE SIZE: 72.1MB

MODEL COVERED:

HARVESTER

1900,2100

ISSUED:

40190022

ISSUE 8-89

(REPLACES ALL PREVIOUS ISSUES)


CONTENTS:

SAFETY

STANDARD TORQUE DATA - HYDRAULIC TUBES AND FITTINGS

HARDWARE KEY

SECTION 1 - REPLACING MODEL 1900 MAIN DRIVE BELTS

SECTION 2 - CUTTERHEAD CLUTCH ASSEMBLY

SECTION 3-TRANSFER GEARBOX REPAIR - MODEL 2100 ONLY

SECTION 4 - CUTTERHEAD GEARBOX REPAIR

SECTION 5 - CUTTERHEAD BEARINGS

SECTION 6-CUTTERHEAD AND FEEDROLL ASSEMBLY REMOVAL

SECTION 7 - REVERSING GEARBOX REPAIR

SECTION 8 - BLOWER AND SPOUT ASSEMBLY

SECTION 9 - FEEDROLLS AND FEEDROLL DRIVE REPAIR

SECTION 10 - GROUND DRIVE TRANSMISSION

SECTION 11 - FINAL DRIVE REPAIR

SECTION 12-ATTACHMENT FLOTATION SYSTEM

SECTION 13-HYDRAULIC SYSTEM

SECTION 14 - HYDROSTATIC SYSTEM

SECTION 15- POWERED REAR AXLE

SECTION 16- ELECTRICAL SYSTEM

SECTION 17 - METAL DETECTOR
