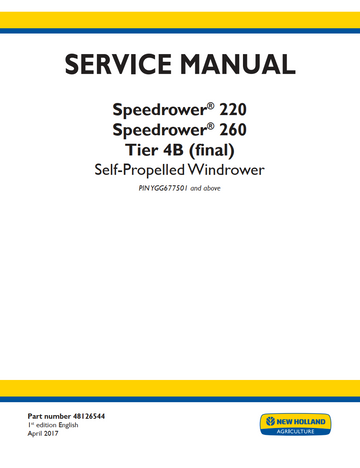

NEW HOLLAND SPEEDROWER 220 260 TIER 4B SELF PROPELLED WINDROWER SERVICE MANUAL

NEW HOLLAND SPEEDROWER 220 260 TIER 4B SELF PROPELLED WINDROWER SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 3,979
FILE SIZE: 209MB

MODEL COVERED:

SPEEDROWER 220

SPEEDROWER 260

TIER 4B (FINAL)

PIN YGG677501 AND ABOVE

ENGINE:

[YGG677501 - ]

ISSUED:

PART NUMBER 48126544

1ST EDITION ENGLISH

APRIL 2017


CONTENTS:

INTRODUCTION

ENGINE

FRONT AXLE SYSTEM

REAR AXLE SYSTEM

HYDROSTATIC DRIVE

BRAKES AND CONTROLS

HYDRAULIC SYSTEMS

FRAMES AND BALLASTING

STEERING

WHEELS

CAB CLIMATE CONTROL

ELECTRICAL SYSTEMS

PLATFORM, CAB, BODYWORK, AND DECALS

SPECIAL TOOL INDEX

ELECTRICAL SCHEMATIC - DRAPER READY - PIN YGG677501 AND ABOVE - 48049018

ELECTRICAL SCHEMATIC - NON-DRAPER READY - PIN YGG677501 AND ABOVE - 48049019

HYDRAULIC SCHEMATIC - DRAPER READY - PIN YGG677501 AND ABOVE - 48049008

HYDRAULIC SCHEMATIC - NON-DRAPER READY - PIN YGG677501 AND ABOVE - 48049012
