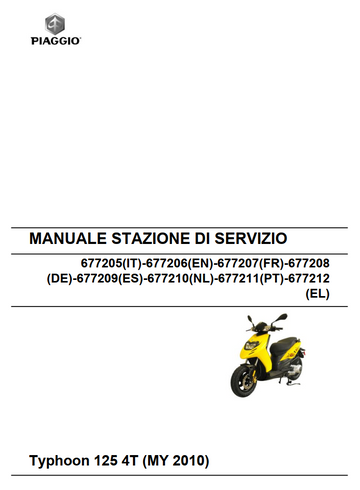

PIAGGIO TYPHOON 125 4T SCOOTER WORKSHOP SERVICE REPAIR, PARTS MANUAL

PIAGGIO TYPHOON 125 4T SCOOTER WORKSHOP SERVICE REPAIR, PARTS MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 317
FILE SIZE: 42.6MB

ENGINE COVERED:

124 cc 1-CYLINDER, 4-STROKE, AIR-COOLED, SOHC


CONTENTS:

CHARACTERISTICS

SPECIAL TOOLS

MAINTENANCE

TROUBLESHOOTING

ELECTRICAL SYSTEM

COMPONENTS ARRANGEMENT

INSTRUMENT PANEL

IGNITION SYSTEM

BATTERY RECHARGE

STARTING SYSTEM

DEVICES AND ACCESSORIES

LIGHTS AND TURN INDICATORS

IMMOBILIZER SYSTEM

DIAGNOSTIC CODE

STARTER MOTOR

ENGINE SYSTEM

AUTOMATIC TRANSMISSION

AIR DUCT SYSTEM

DRIVE-BELT SYSTEM

INTERMEDIATE GEAR

LUBRICATION SYSTEM

WATER PUMP SYSTEM

ENGINE FROM VEHICLE

CARBURETOR SYSTEM

SUSPENSIONS SYSTEM

HANDLEBAR-FORK

STEERING COLUMN

SWING ARM SYSTEM

BRAKING SYSTEM

ANTI-LOCK BRAKE SYSTEM

ASR SYSTEM

COOLING SYSTEM

CHASSIS SYSTEM

INSTRUMENT PANEL

SEAT AND RACK SYSTEM

WHEEL HOUSING SYSTEM

PRE-DELIVERY CHECK

WIRING DIAGRAMS
