POLARIS RANGER 800 4X4 6X6 2013-2015 WORKSHOP SERVICE REPAIR, WIRING MANUAL

POLARIS RANGER 800 4X4 6X6 2013-2015 WORKSHOP SERVICE REPAIR, WIRING MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 468
FILE SIZE: 64.2MB

MODEL COVERED:

POLARIS RANGER 4X4 800

POLARIS RANGER 4X4 800 EPS

POLARIS RANGER CREW 800

POLARIS RANGER CREW 800 EPS

POLARIS RANGER 6X6 800


ENGINE COVERED:

760 cc 2-CYLINDER, 4-STROKE, LIQUID-COOLED, DOHC


CONTENTS:

GENERAL INFORMATION

SERVICE INFORMATION

LUBRICATION & SEAL POINT

TIGHTENING TORQUE

SPECIAL SERVICE TOOLS

IDENTIFICATION

MAINTENANCE DATA

ENGINE SYSTEM

FUEL SYSTEM

AIR INTAKE SYSTEM

TRANSMISSION SYSTEM

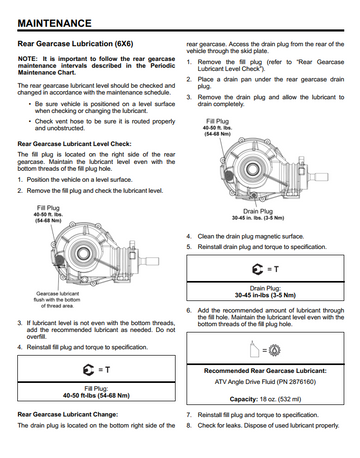

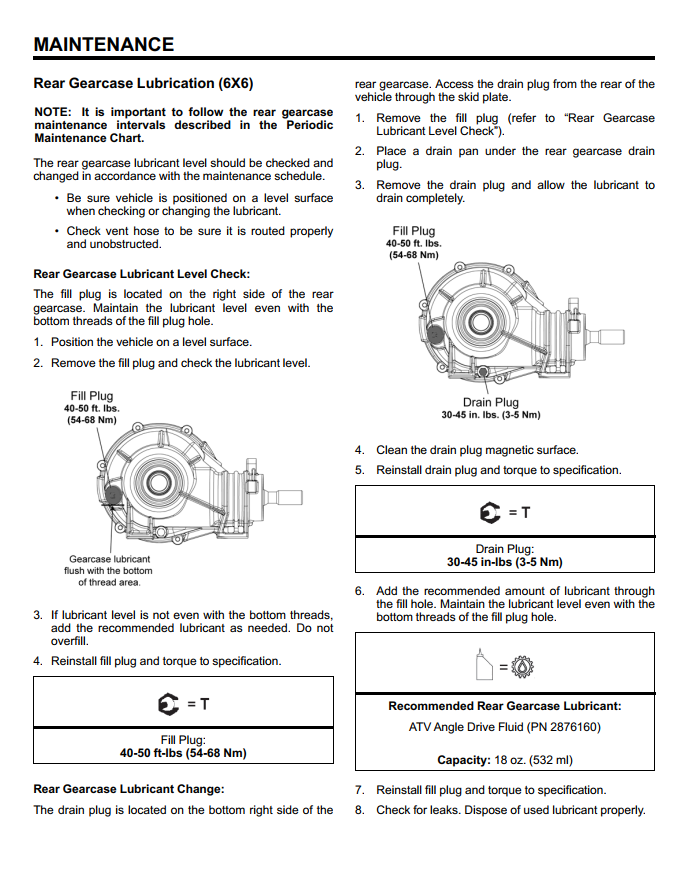

GEARCASES SYSTEM

COOLING SYSTEM

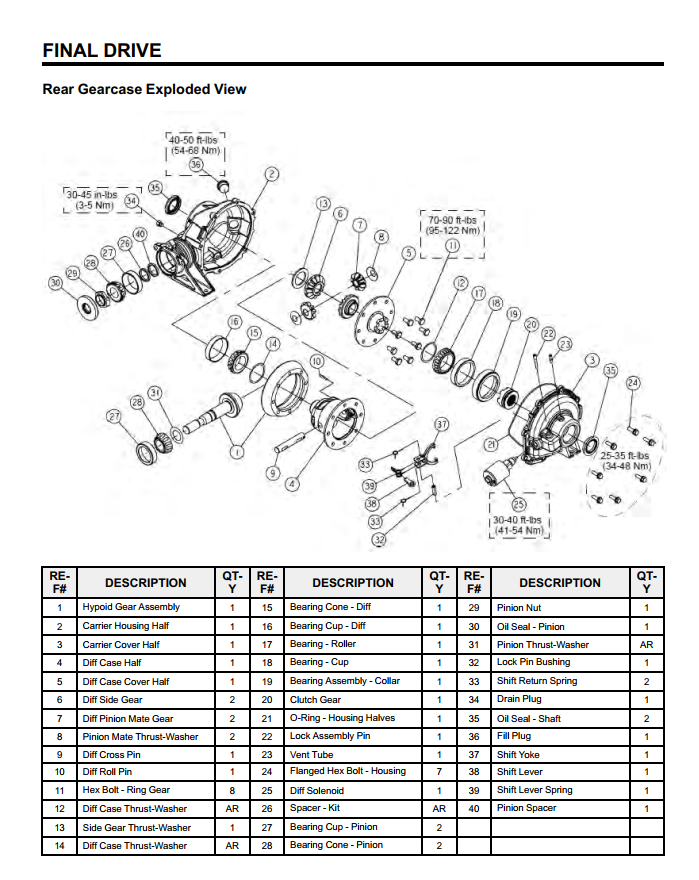

FINAL DRIVE SYSTEM

WHEEL AND TIRE SYSTEM

CV SHAFT BOOT SYSTEM

ELECTRICAL SYSTEM

IGNITION SYSTEM

STEERING SYSTEM

SUSPENSION SYSTEM

BRAKE SYSTEM

ENGINE LUBRICATION

ENGINE REMOVAL

ENGINE INSTALLATION

EFI SERVICE

FUEL INJECTION SYSTEM

ELECTRONIC CONTROL UNIT (ECU)

FUEL PUMP & FUEL TANK

FUEL PRESSURE REGULATOR

FUEL INJECTORS SYSTEM

TEMP / MANIFOLD ABSOLUTE PRESSURE SENSOR (T-MAP)

CRANKSHAFT POSITION SENSOR (CPS)

IDLE AIR CONTROL (IAC)

THROTTLE POSITION SENSOR (TPS)

EFI DIAGNOSTICS SYSTEM

CHASSIS / MAIN FRAME

CAB FRAME / SEAT BACK / HEADREST

PVT AIR INTAKE BAFFLE BOX

CARGO BOX-STORAGE BOX

POWER STEERING SYSTEM

STABILIZER BAR / LINKAGE

HIGH ALTITUDE CLUTCH CHART

PVT SYSTEM SERVICE

DRIVE BELT SYSTEM

DRIVE CLUTCH SERVICE

DRIVE SHAFT-PROPSHAFT

SHIFT LEVER-SHIFT CABLE

HYDRAULIC BRAKE SYSTEM

SWITCHES / CONTROLS

VEHICLE SPEED SENSOR

DIFFERENTIAL SOLENOID

INSTRUMENT CLUSTER

CHARGING SYSTEM

LIGHTING SYSTEM

STARTING SYSTEM

ELECTRONIC POWER STEERING (EPS)

TROUBLESHOOTING

WIRING DIAGRAMS
