SAME IRON 130S 140S 150S 165S 175S 190S 200 TRACTOR WORKSHOP SERVICE MANUAL

SAME IRON 130S 140S 150S 165S 175S 190S 200 TRACTOR WORKSHOP SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 2,150
FILE SIZE: 43.4MB

MODEL COVERED:

SAME IRON 130S TRACTOR

SAME IRON 140S TRACTOR

SAME IRON 150S TRACTOR

SAME IRON 165S TRACTOR

SAME IRON 175S TRACTOR

SAME IRON 190S TRACTOR

SAME IRON 200 TRACTOR


CONTENTS:

SECTION 00 CONTAINS THE GENERAL SAFETY RULES, INFORMATION ON HOW TO USE AND UPDATE

THE MANUAL, THE SYMBOLS USED, THE PRODUCTS REQUIRED, THE STANDARD TIGHTENING

TORQUES AND A CONVERSION TABLE FOR UNITS OF MEASUREMENT.

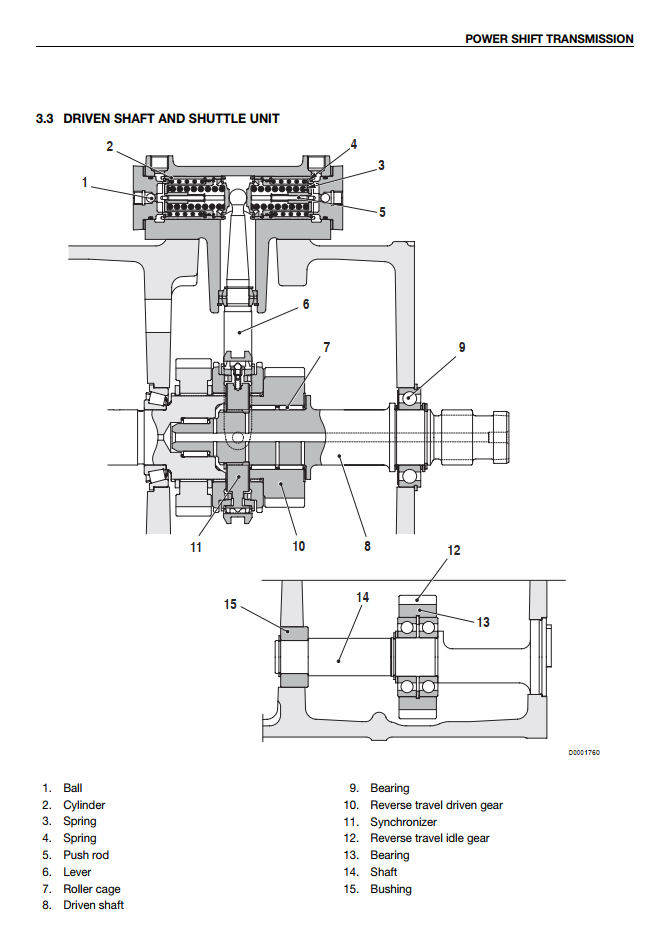

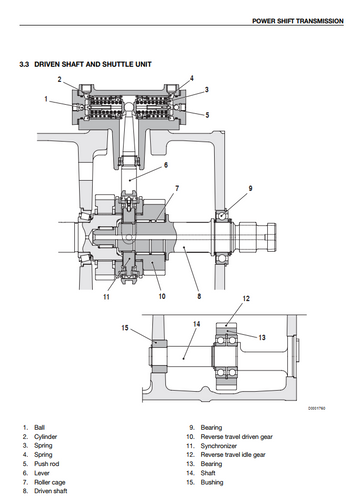

SECTION 10 CONTAINS TECHNICAL DESCRIPTIONS AND INFORMATION REGARDING THE MECHANICAL

AND HYDRAULIC OPERATION OF MACHINE COMPONENTS, THE DESIGNATIONS OF

THE VARIOUS COMPONENTS, HYDRAULIC DIAGRAMS AND GENERAL TECHNICAL DATA.

SECTION 20 CONTAINS INFORMATION ON THE TRACTOR'S ELECTRICAL AND ELECTRONIC SYSTEMS,

THE PROCEDURES FOR PUTTING INTO SERVICE, THE LIST OF ALARMS AND A GUIDE TO THE

USE OF THE SOFTWARE REQUIRED FOR TRACTOR AND ENGINE CONFIGURATION AND ACCESS

TO DIAGNOSTIC CODES.

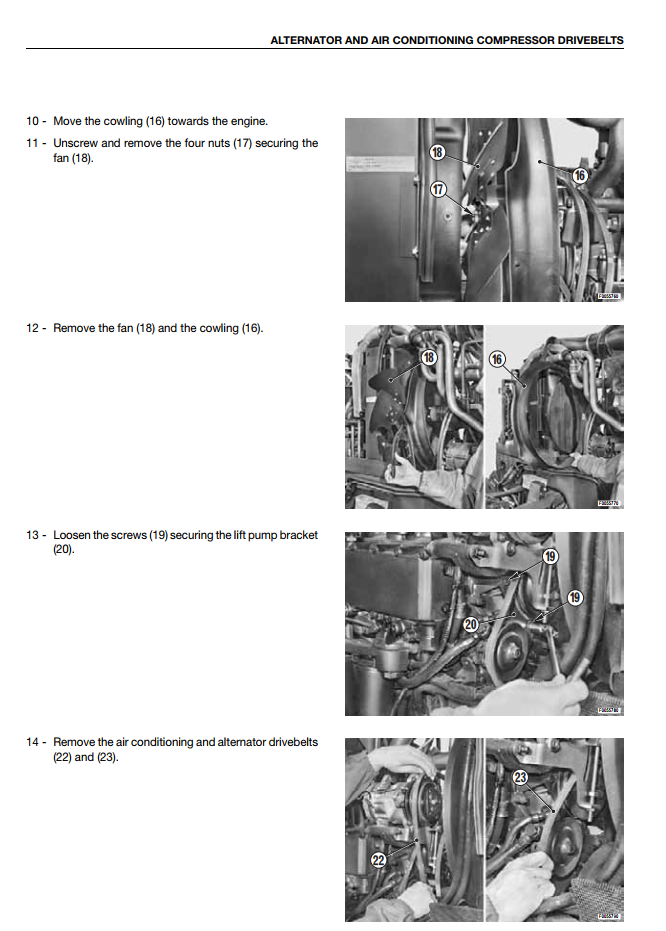

SECTION 30 CONTAINS THE METHODS, CHECKS AND ADJUSTMENTS REGARDING THE EXTERNAL

COMPONENTS; THE OPERATIONS DEALT WITH IN THIS SECTION DO NOT REQUIRE REMOVAL

OF THE VARIOUS ASSEMBLIES THAT FORM THE TRACTOR FRAME AND CAB.

SECTION 40 CONTAINS INFORMATION AND DIAGRAMS REGARDING THE MACHINE'S ELECTRICAL

AND ELECTRONIC SYSTEMS.
