SUZUKI GSX-R750 2007-2010 BIKE WORKSHOP REPAIR SERVICE, WIRING MANUAL

SUZUKI GSX-R750 2007-2010 BIKE WORKSHOP REPAIR SERVICE, WIRING MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 522
FILE SIZE: 50.4MB

ENGINE SPECIFICATIONS:

Type ....................... Four stroke, liquid-cooled, DOHC

Number of cylinders ........ 4

Bore....................... 70.0 mm (2.756 in)

Stroke..................... 48.7 mm (1.917 in)

Displacement .............. 750 cm³ (45.8 cu. in)

Compression ratio ......... 12.5 : 1

Fuel system................ Fuel injection

Air cleaner ............... Paper element

Starter system............. Electric

Lubrication system ........ Wet sump

Idle speed................. 1 200 ± 100 r/min


CONTENTS:

GENERAL INFO

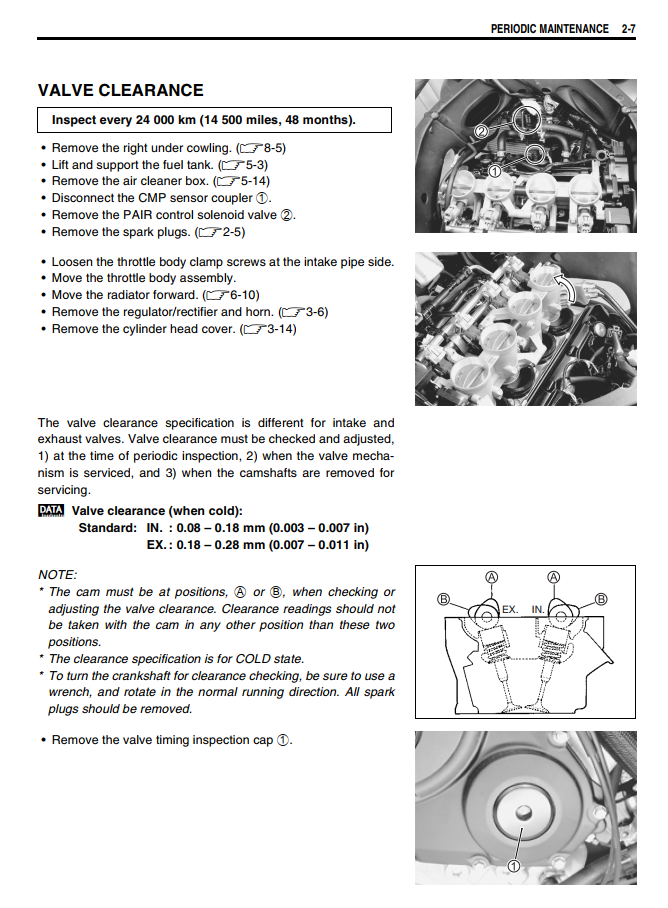

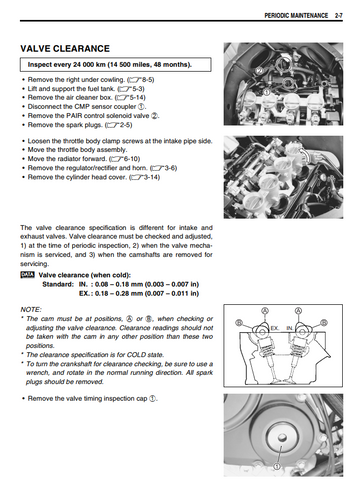

MAINTENANCE

ENGINE

FI SYSTEM

FUEL SYSTEM

EXHAUST SYSTEM

COOLING SYSTEM

LUBRICATION SYSTEM

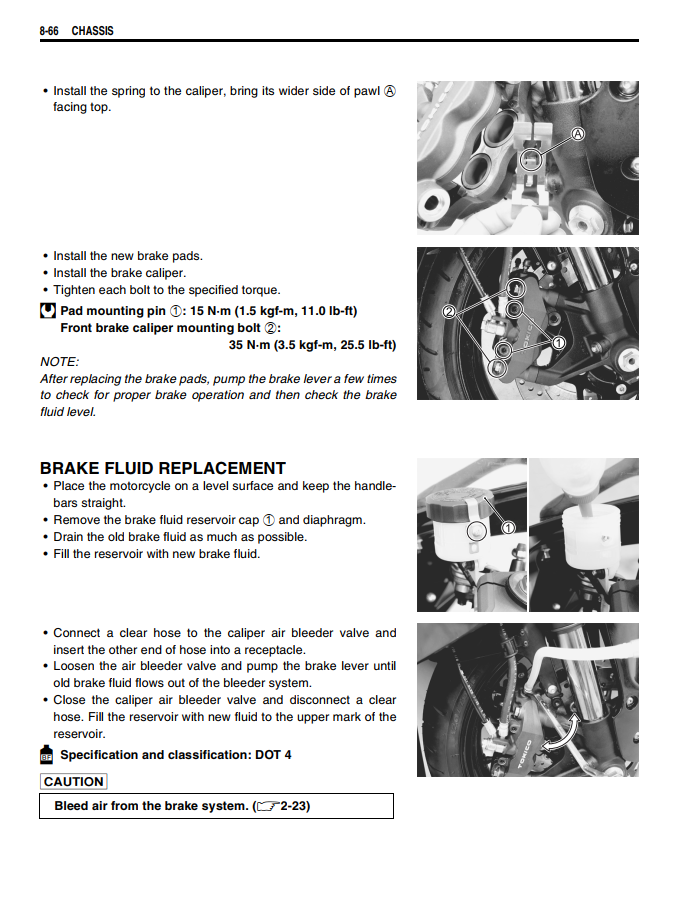

CHASSIS

ELECTRICAL SYSTEM

SERVICING INFO

EMISSION CONTROL

WIRING DIAGRAM
