TORO TIMECUTTER SS MX ZS 2011-2013 MOWER WORKSHOP SERVICE REPAIR MANUAL

TORO TIMECUTTER SS MX ZS 2011-2013 MOWER WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 136
FILE SIZE: 26.6MB

MODEL & ENGINE COVERED:

SS3200 SS4200 SS4235

CALIFORNIA MODEL ALSO

16 HP 452CC KOHLER 32” MOWER, 1 BLADE

20 HP 597CC KOHLER 42” MOWER, 2 BLADES

20 HP 725CC KOHLER 42” MOWER, 2 BLADES

SS4260 SS5000 SS5060

21.5 HP 726CC KAWASAKI 42” MOWER, 2 BLADES

21.5 HP 726CC KAWASAKI 50” MOWER, 3 BLADES

23 HP 726CC KAWASAKI 50” MOWER, 3 BLADES

SS3200 SS4200 SS4235

CALIFORNIA MODEL ALSO

16 HP 452CC TORO 32” MOWER, 1 BLADE

20 HP 597CC KOHLER 42” MOWER, 2 BLADES

20 HP 725CC KOHLER 42” MOWER, 2 BLADES

SS4260 SS5000 SS5060

21.5 HP 726CC KAWASAKI 42” MOWER, 2 BLADES

21.5 HP 726CC KAWASAKI 50” MOWER, 3 BLADES

23 HP 726CC KAWASAKI 50” MOWER, 3 BLADES

MX4260 MX5060

23 HP 726CC KAWASAKI 42” FABRICATED DECK

2 - BLADES

23 HP 726CC KAWASAKI 50” FABRICATED DECK

3 – BLADES

SS3200 SS4235 SS4235

CALIFORNIA MODEL

16 HP 452CC TORO 32” MOWER, 1 BLADE

22 HP 725CC KOHLER 42” MOWER, 2 BLADES

603CC KAWASAKI 42” MOWER, 2 BLADES

SS4260 SS5000 SS5060

21.5 HP 726CC KAWASAKI 42” MOWER, 2 BLADES

23 HP 726CC KAWASAKI 50” MOWER, 3 BLADES

23 HP 726CC KAWASAKI 50” MOWER, 3 BLADES

MX4260 MX5060

23 HP 726CC KAWASAKI 42” FABRICATED DECK

2 - BLADES

23 HP 726CC KAWASAKI 50” FABRICATED DECK

3 – BLADES

ENGINE SPECIFICATIONS

MODEL # MODEL ENGINE INFORMATION

74616 SS4216 TORO, SINGLE CYLINDER, 16 HP, HIGH IDLE: 3400 - 3450 RPM

74620 SS3200 KOHLER, SINGLE CYLINDER, 15 HP, HIGH IDLE: 3300 + 100 RPM

74621 SS3200 TORO, SINGLE CYLINDER, 16 HP, HIGH IDLE: 3400 - 3450 RPM

74622 SS4200 KOHLER, SINGLE CYLINDER, 19 HP, HIGH IDLE: 3300 + 100 RPM

74623 SS4200 KOHLER, SINGLE CYLINDER, 20 HP, HIGH IDLE: 3300 + 100 RPM

74624 SS4235 KAWASAKI, TWIN CYLINDER, 20 HP, HIGH IDLE: 3300 + 100 RPM

74626 SS4260 KAWASAKI, TWIN CYLINDER, 21.5 - 22 HP, HIGH IDLE: 3300 + 100 RPM

74627 SS4235 KOHLER, TWIN CYLINDER, 20 HP, HIGH IDLE: 3300 + 100 RPM

74630 SS5000 KAWASAKI, TWIN CYLINDER, 21.5 - 22 HP, HIGH IDLE: 3300 + 100 RPM

74631 SS5000 KAWASAKI, TWIN CYLINDER, 23 HP, HIGH IDLE: 3300 + 100 RPM

74632 SS5060 KAWASAKI, TWIN CYLINDER, 23 HP, HIGH IDLE: 3300 + 100 RPM

74633 SS4235 KOHLER, TWIN CYLINDER, 22 HP, HIGH IDLE: 3300 + 100 RPM

74625 SS4235 KAWASAKI, TWIN CYLINDER, 20 HP, HIGH IDLE: 3300 + 100 RPM

74628 SS4235 KOHLER, SINGLE CYLINDER, 20 HP, HIGH IDLE: 3300 + 100 RPM

74640 MX4260 KAWASAKI, TWIN CYLINDER, 23 HP, HIGH IDLE: 3300 + 100 RPM

74641 MX5060 KAWASAKI, TWIN CYLINDER, 23 HP, HIGH IDLE: 3300 + 100 RPM

74385 ZS3200 (INTL) KOHLER, SINGLE, 15 HP, HIGH IDLE: 2600 + 100 RPM

74386 ZS4200 (INTL) KAWASAKI, TWIN CYLINDER, 20 HP, HIGH IDLE: 2800 + 100 RPM

74387 ZS5000 (INTL) KAWASAKI, TWIN CYLINDER, 24 HP, HIGH IDLE: 3000 + 100 RPM

74389 ZS4200S (INTL) KOHLER, SINGLE, 20 HP, HIGH IDLE: 2800 + 100 RPM


CONTENTS:

SAFETY INFORMATION

SPECIFICATIONS

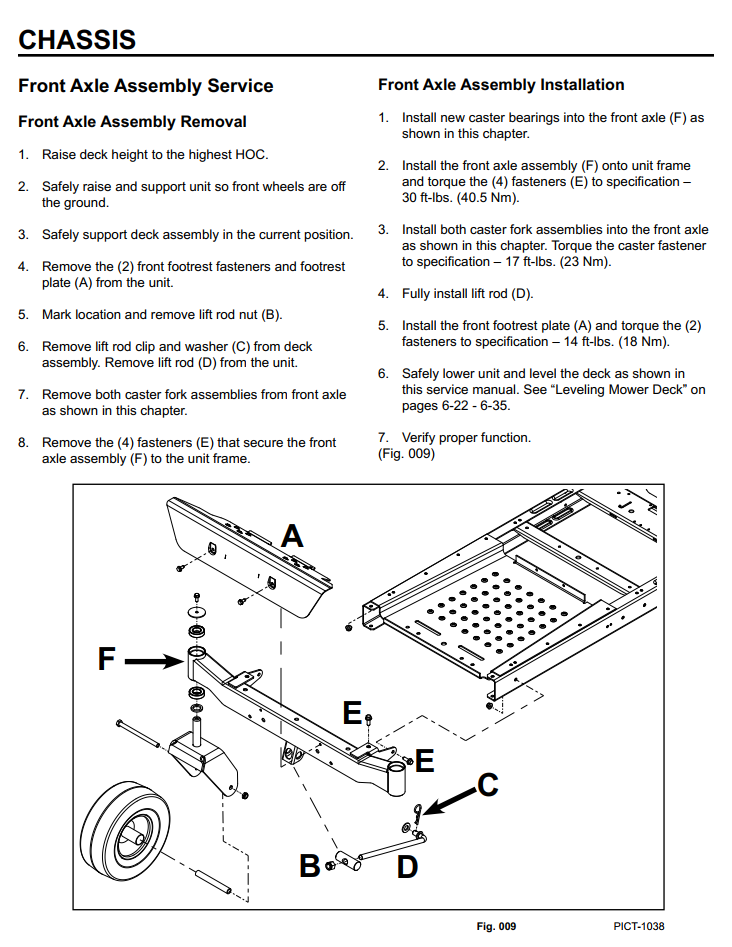

CHASSIS

ENGINE

HYDROSTATIC DRIVE SYSTEM

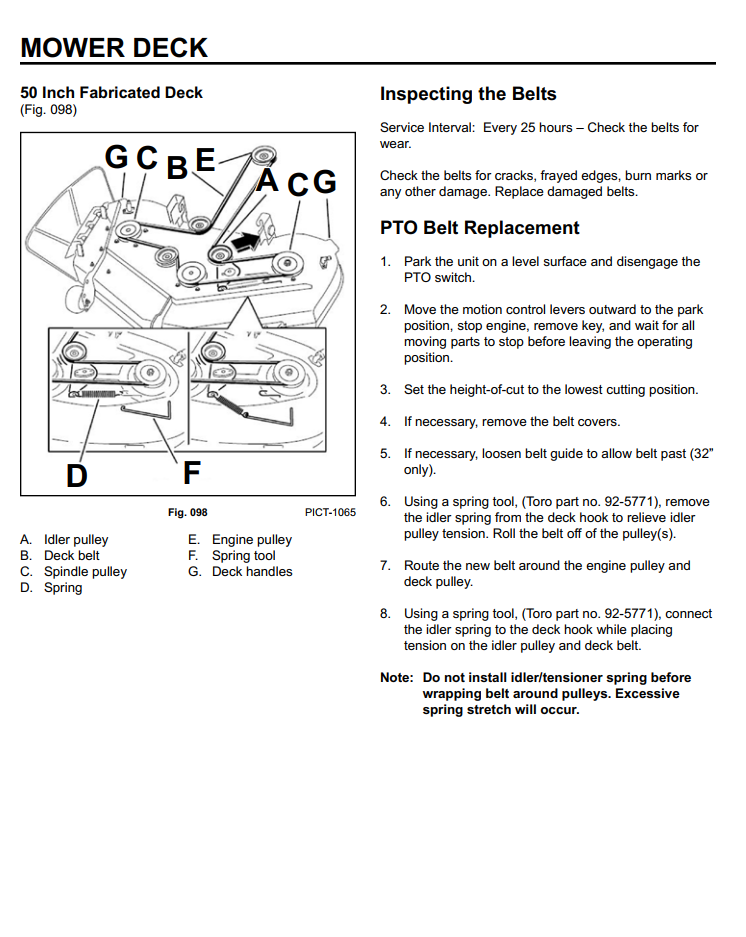

MOWER DECK

ELECTRICAL
