TOYOTA 2H 12H-T LANDCRUISER DIESEL ENGINE 1980-1988 SERVICE REPAIR MANUAL

TOYOTA 2H 12H-T LANDCRUISER DIESEL ENGINE 1980-1988 SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF (SCANNED PDF)
PAGES: 338
FILE SIZE: 73.5MB

2H ENGINE:
The 2H is a 4.0 L (3980 cc) inline 6, 12 valve OHV diesel engine. Bore is 91 mm and stroke is 102 mm, with a compression ratio of 20.7:1. Output is 103 hp (77 kW) at 3500 rpm - later production years 107 hp (80 kW) with 177 ft·lbf (240 N·m) of torque at 2000 rpm.

Applicable Model:

    Toyota Land Cruiser HJ47, HJ60
    Toyota Dyna HU20, 30, 40, 50
    Toyota Coaster HB20, 30

12H-T ENGINE:
The 12H-T is a 4.0 L (3980 cc) inline 6, 12 valve OHV turbocharged diesel engine. Bore is 91 mm and stroke is 102 mm, with a compression ratio of 18.6:1. Output is 134 hp (100 kW) at 3500 rpm with 232 ft·lbf (315 N·m of torque at 1800 rpm.

Applicable Model:

    Toyota Land Cruiser HJ61
    Toyota Coaster HB20, 30

CONTENTS:

INTRODUCTION

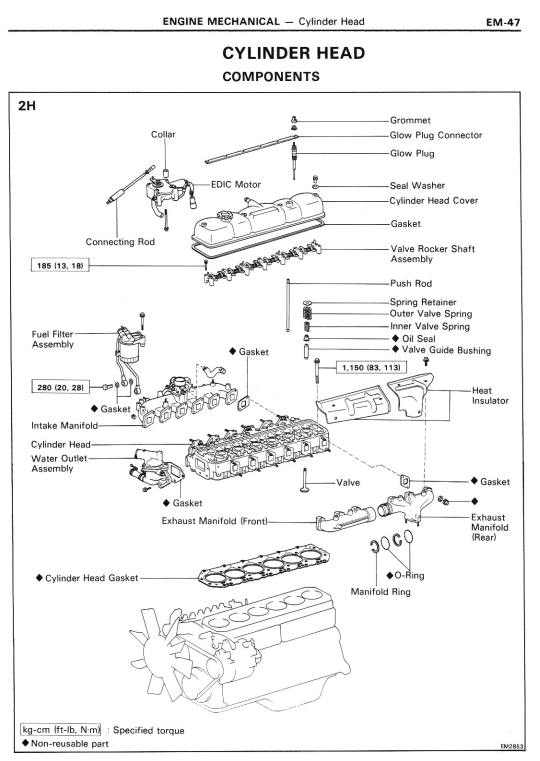

ENGINE MECHANICAL

FUEL SYSTEM

COOLING SYSTEM

LUBRICATION SYSTEM

STARTING SYSTEM

CHARGING SYSTEM

SERVICE SPECIFICATIONS

STANDARD BOLT TORQUE SPECIFICATIONS

SST AND SSM
