VOLVO PENTA SAILDRIVE 130S 130SR 150S 150SR WORKSHOP REPAIR SERVICE MANUAL

VOLVO PENTA SAILDRIVE 130S 130SR 150S 150SR WORKSHOP REPAIR SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 112
FILE SIZE: 5.79MB

MODEL COVERED:

130S-A, 130SR-A, 130S-B, 130SR-B,

130S-C, 130SR-C, 150S-A, 150SR-A,

150S-B, 150SR-B, 150S-C, 150SR-C


CONTENTS:

SAFETY INFORMATION

SPECIAL TOOLS

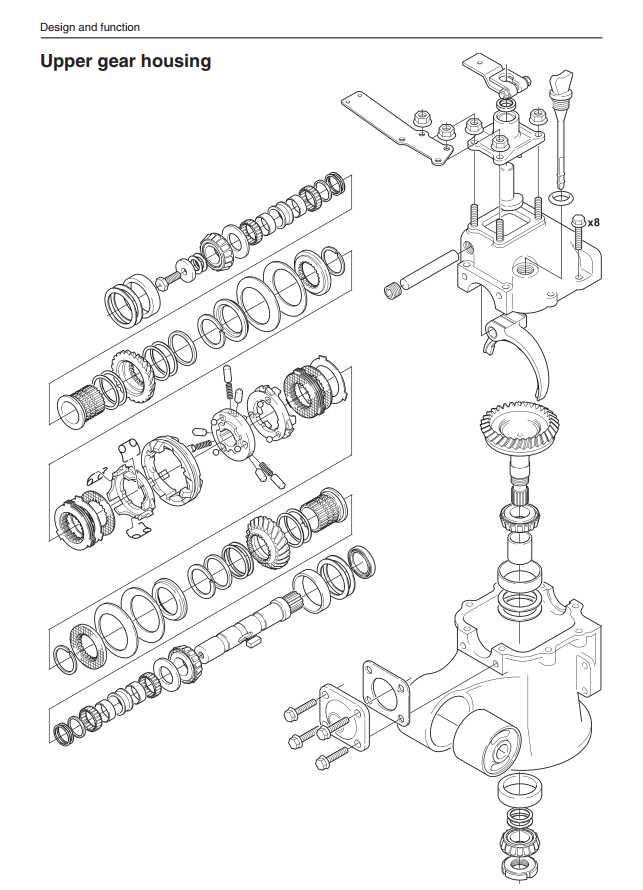

DESIGN AND FUNCTION

REPAIR INSTRUCTIONS

UPPER AND LOWER GEAR HOUSING, DISASSEMBLY

UPPER GEAR, RENOVATION

LOWER GEAR, RENOVATION

UPPER AND LOWER GEAR HOUSING, ASSEMBLY

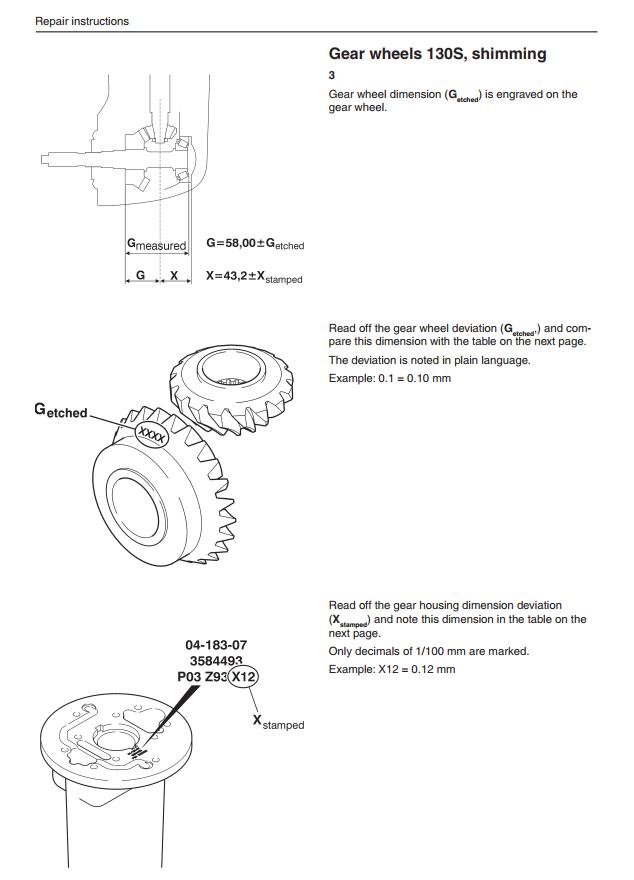

SHIMMING, QUICK REFERENCE GUIDE

TROUBLESHOOTING

TECHNICAL DATA

EXTRAS INCLUDED:

DRIVE 150S-A, 150S-B, 150SR-A,150SR-B PARTS LIST
