VOLVO PENTA SAILDRIVE MS25S-A MS25SR-A WORKSHOP SERVICE REPAIR, PARTS MANUAL

VOLVO PENTA SAILDRIVE MS25S-A MS25SR-A WORKSHOP SERVICE REPAIR, PARTS MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 86
FILE SIZE: 6.24MB

MODEL COVERED:

VOLVO PENTA SAILDRIVE MS25S-A MS25SR-A

CONTENTS:

SAFETY INFORMATION

INTRODUCTION

IMPORTANT

GENERAL INFORMATION

ABOUT THE WORKSHOP MANUAL

SPARE PARTS

REPAIR INSTRUCTIONS

OUR COMMON RESPONSIBILITY

TIGHTENING TORQUE

TORQUE-ANGLE TIGHTENING

LOCK NUTS

STRENGTH CLASSES

SEALANTS

SAFETY RULES FOR FLUOROCARBON RUBBER

SPECIAL TOOLS

OTHER SPECIAL EQUIPMENT

CHEMICALS

DESIGN AND FUNCTION

POWERTRAIN

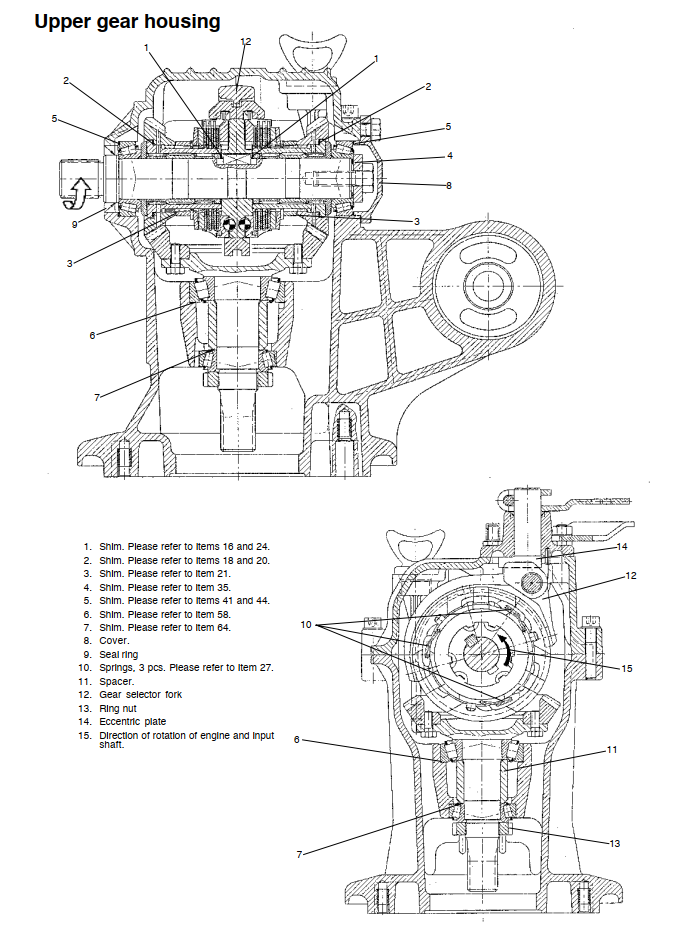

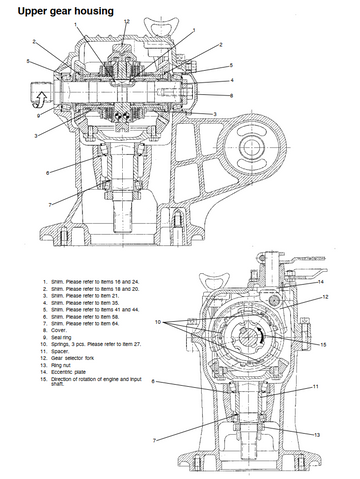

UPPER GEAR HOUSING

LOWER GEAR HOUSING

DISASSEMBLY - UPPER AND LOWER GEAR HOUSINGS

REPAIR - UPPER GEAR HOUSING

REPAIR - LOWER GEAR HOUSING

PRESSURE TESTING

PAINTING OF THE DRIVE

TECHNICAL DATA

REFERENCES TO SERVICE BULLETINS

EXTRAS INCLUDED:

PARTS MANUAL
