WOODWARD MI-07 INTEGRATED ENGINE CONTROL SYSTEM FOR 2.0L HMC ENGINE SERVICE MANUAL

WOODWARD MI-07 INTEGRATED ENGINE CONTROL SYSTEM FOR 2.0L HMC ENGINE SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 144
FILE SIZE: 3.15MB

MODEL COVERED:

MI-07 INTEGRATED ENGINE CONTROL SYSTEM FOR 2.0L HMC ENGINES

LPG & DUAL FUEL SYSTEMS

2007 EMISSION-CERTIFIED SYSTEMS

NON-CERTIFIED SYSTEMS

PART NO:

36517A

CONTENTS:

REGULATORY COMPLIANCE

REGULATORY COMPLIANCE

SPECIAL CONDITIONS FOR SAFE USE

CHAPTER 1. LPG SYSTEM OVERVIEW

CHAPTER 2. GASOLINE ENGINES

CHAPTER 3. SPECIFICATIONS

CHAPTER 4. RECOMMENDED MAINTENANCE

CHAPTER 5. INSTALLATION PROCEDURES

CHAPTER 6. TESTS AND ADJUSTMENTS

CHAPTER 7. BASIC TROUBLESHOOTING

CHAPTER 8. ADVANCED DIAGNOSTICS

CHAPTER 9. PARTS DESCRIPTION

APPENDIX

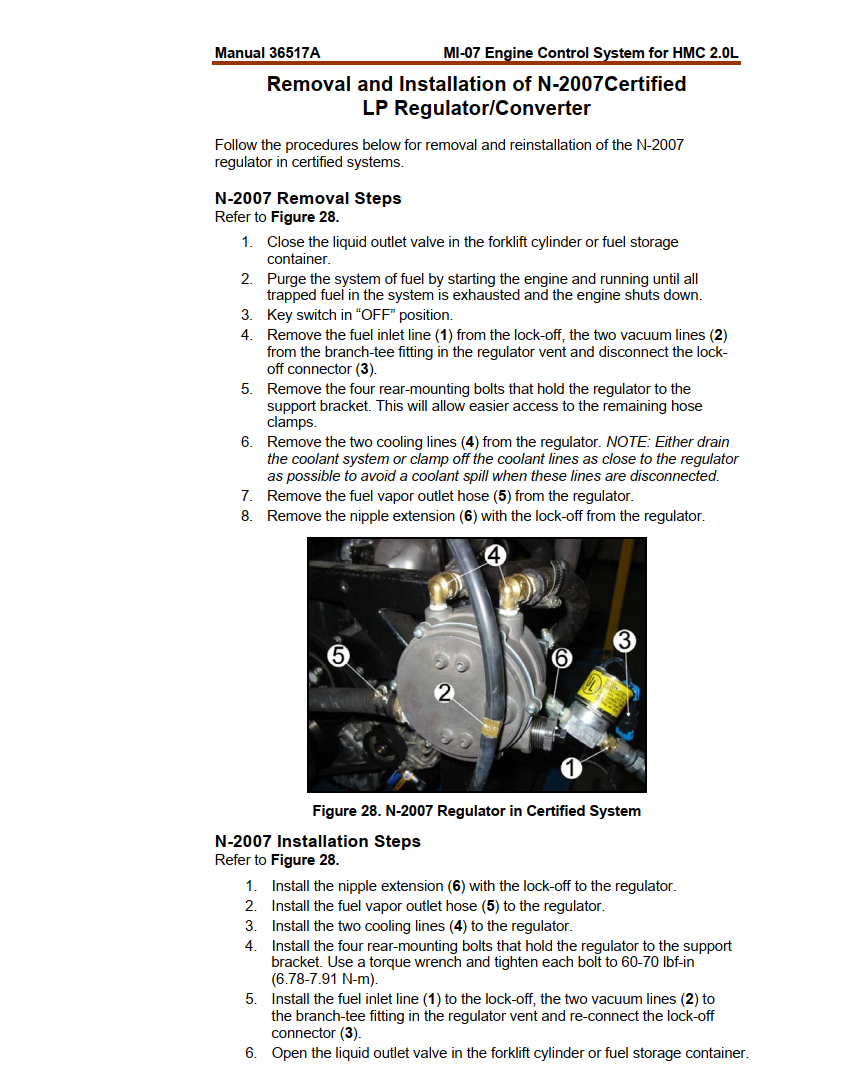

Designed for technicians servicing LPG and dual-fuel industrial engines, this Woodward MI-07 Integrated Engine Control System Service Manual for 2.0L HMC Engines provides complete factory guidance for diagnosing, maintaining, and repairing the advanced MI-07 engine management platform. Covering the Small Engine Control Module (SECM), electronic throttle control, ignition management, LPG fuel delivery systems, gasoline fuel systems, engine speed governing, emissions control, sensor diagnostics, CANBus communications, fault code analysis, and advanced troubleshooting procedures, the manual delivers the technical information required for accurate diagnostics and reliable repairs. Detailed wiring diagrams, maintenance schedules, testing and adjustment procedures, service tool operation, fuel system diagnostics, and component testing instructions help technicians quickly identify faults and restore peak engine performance. With approximately 124 pages of factory service information, this manual is an essential workshop resource for maintaining reliability, emissions compliance, and efficient operation of 2.0L HMC-powered forklifts and industrial equipment utilizing the Woodward MI-07 control system.
